KRF T1-25 Ⅰ级电源浪涌保护器
Characteristics
· Provides high protection thanks to its combination of high strength gas discharge (GDT) and a block of high-energy varistor (MOV), allowing high discharge power and a low residual voltage.
· Easily replaceable plug-in modules with locking system.
· Base and modules configured for secure mounting.
· Easy maintenance through local fault locator.
- 产品详情
特点
•通过将高强度气体放电（GDT）和一块高能压敏电阻（MOV）结合使用，可提供高保护能力，从而实现高放电功率和低残留电压。
•易于更换的带锁定系统的插入式模块。
•底座和模块配置为牢固安装。
•通过本地故障定位器轻松维护
三相（3F + N）380 V的避雷器和避雷器。
组合的1型和2型（B + C类）保护器，适用于保护TT（TNS）网络中的低压线路，以防雷击和瞬态浪涌，最高100kA（10/350）。 推荐用于具有外部防雷功能的工业设施，系统和建筑物。

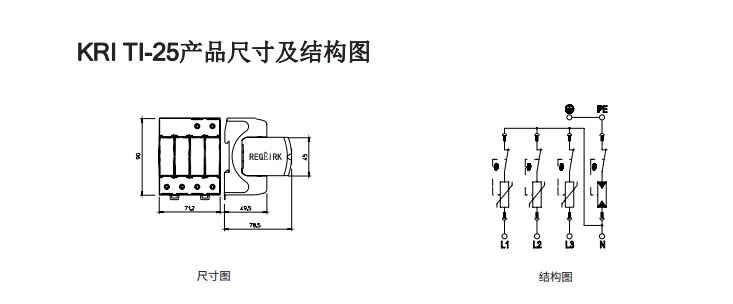

Technical specifications
|
Description
|
Reference |
NºFases |
Grade of proteccion |
Range Tª |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
Weight (g) |
|
KRF T1-25/3+1 |
370213 |
3F+N |
IP20 |
de -40º a 80ºC |
72 |
90 |
72 |
45 |
48 |
670 |
|
KRF T1-25/1+1 |
370215 |
1F+N |
IP20 |
de -40º a 80ºC |
- |
- |
- |
45 |
48 |
300 |
|
Parameters |
|
L-N |
NPE |
|
Rated voltage |
Un |
230 V AC |
- |
|
Maximum working voltage |
Uc |
260 V AC |
255 V AC |
|
Current peak value of lightning (10/350μs) |
Iimp |
25 kA |
50 kA |
|
Nominal discharge current (8/20μs) |
In |
30 kA |
50 kA |
|
Maximum discharge current (8/20μs) |
Imax |
60 kA |
100 kA |
|
Protection level |
Up |
<1,50 kV |
|
|
Backup fuse maximum |
|
250A gL/Gg |
|
|
Response time |
tA |
100 ns |
|
|
Wire cross-section, rigid min/max |
|
2,5-50mm2 |
|
|
Wire cross-section, flexible min/maxIndicador |
|
2,5-35mm2 |
|
|
Local fault indicator |
|
yes |
no |
|
Mounting type |
|
DIN rail |
|
