KRS T2-40 Ⅱ级电源浪涌保护器
Provides high protection thanks to its combination of high strength gas discharge (GDT) and a block of high-energy varistor (MOV), allowing high discharge power and a low residual voltage.
Easily replaceable plug-in modules with locking system.
Base and modules configured for secure mounting.
Easy maintenance through local fault locator.
- 产品详情
三相（3F + N）220 V的雷电和电涌放电器。
2型（C类）保护器，适用于在TT（TNS）网络中为低压线路提供防雷击和最高40kA（8/20）的瞬态浪涌保护。
推荐用于工业安装，配电板，雷击风险低或由地下电力线供电的建筑物。
第二级产品
KRS T2-40
Lightning and surge arrester for three phase lines (3F+N) 220 V.
Type 2 (Class C) protector, suitable for protection of low voltage lines against lightning strikes and transitory surges of up to 40kA (8/20) in TT (TNS) networks.
Recommended for industrial installations, distribution boards, buildings with low risk of receiving lightning strikes or fed by underground power lines.
Technical specifications
|
Description |
Reference |
NºPhases |
Grade of protection |
Range Tª work |

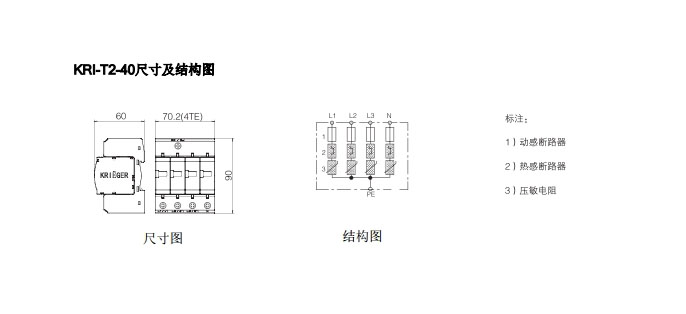

A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
Weight (g) |
|
KRS T2-40/3+1 |
370220 |
3F+N |
IP20 |
-40º a 80ºC |
72 |
82 |
72 |
45 |
48 |
450 |
|
KRS T2-40/1+1 |
370221 |
1F+N |
IP20 |
-40º a 80ºC |
- |
- |
- |
45 |
48 |
95 |
|
Parámetros |
|
L-N |
NPE |
|
Rated voltage |
Un |
230 V AC |
- |
|
Maximum working voltage |
Uc |
275 V AC |
255 V AC |
|
Current peak value of lightning (10/350μs) |
Iimp |
- |
12 kA |
|
Nominal discharge current (8/20μs) |
In |
20 kA |
20 kA |
|
Maximum discharge current (8/20μs) |
Imax |
40 kA |
40 kA |
|
Protection level |
Up |
<1,35 kV |
<1,50 kV |
|
Backup fuse maximum |
|
160 A gL/gG |
- |
|
Response time |
tA |
25 ns |
100 ns |
|
Wire cross-section, rigid min/max |
|
1-35mm2 |
|
|
Wire cross-section, flexible min/maxIndicador |
|
1-25mm2 |
|
|
Local fault indicator |
|
si |
no |
|
Mounting type |
|
carril DIN |
|
